AS-3957 High Gain Dipole Antenna

Features

  • Frequency Range: 969 MHz to 1.206 GHz

  • VSWR: 2.0:1

  • Power Handling: 500 W Average

  • Broadband

  • Lightweight and Rugged

  • High Gain

  • Receiving or Transmitting

  • Ground Independent

  • MIL Tested

  • NSN: 5985-01-277-4800

Detailed Description

Valcom's AS-3957 dipole antenna is a rugged mast supported vertically polarized broadband antenna covering the frequency range of 969-1206 MHz. Specifically designed for the U.S Army's JTIDS program.

The antenna is designed for use under severe environmental conditions. The radiating elements are housed in a single piece fibreglass radome with an integral aluminum mounting spigot.

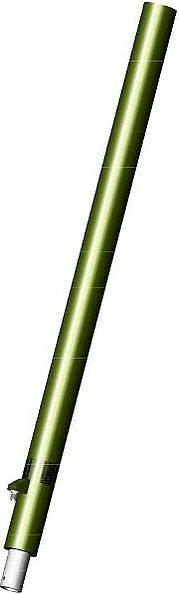

AS-3957 High Gain Dipole Antenna

The antenna can handle up to 1000 Watts peak envelope power and 500 Watts average RF power over the entire frequency range with a VSWR of less than 2.0:1. The RF input connector is a N-TYPE receptacle located on the side of the fibreglass radome.

The antenna meets all the requirements of MIL-STD-810. including method 516-2 for shock, and method 514.2 for vibration as well as all the service conditions of MIL-E-16400. A lightning protection device is installed int he antenna and protects against high voltage build up and EMP.

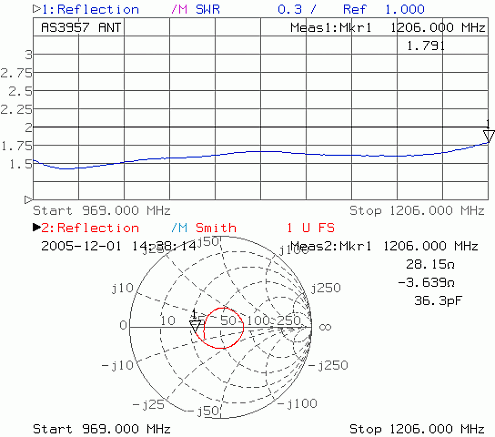

Typical VSWR
