VMB-11512-N Multi-Band Antenna

Features

  • Frequency Range: 115 MHz to 512 MHz

  • VSWR: 3:0

  • Power Handling: 100 W Average

  • Performs with or without a ground plane

  • Light-weight

  • Reliable Design

  • Extremely Rugged

  • Minimum Maintenance

  • PN: VC-08-00065-1

Detailed Description

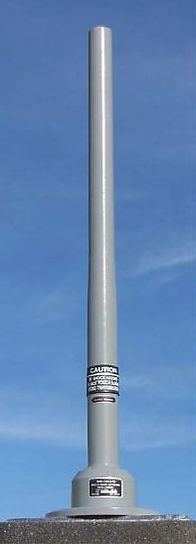

The VMB-11512-N is a general purpose multi-band dipole antenna system. It is ideally suited for shipboard applications and can be mounted on top of extension masts. It is designed for use with today's cutting edge, frequency-agile radios. The VMB-11512-N boasts a power handling capability of 100 Watts and less than 3.0:1 VSWR across the entire operating band of 115 to 512 MHz.

The VMB-11512-N antenna is constructed using the same revolutionary broad band tuning technology as the VMB-11512 vehicular configuration. The antenna is a one piece package that combines a fibreglass whip onto an aluminum mounting base. The whip and base are permanently jointed to form a light-weight yet extremely rugged and reliable antenna system.
