VGS - 120120AM Broadcast Antenna Ground Screen

Valcom's

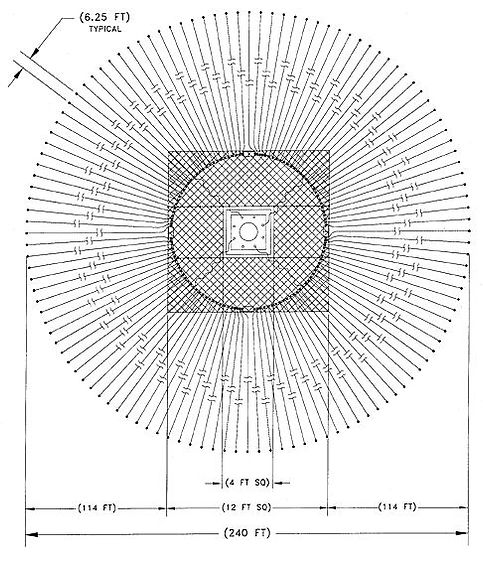

VGS-120120AM Ground Screen consists of 120 radials each 114 feet long, joined to a center ring at the base of the antenna.

VGS - 120120AM Broadcast Antenna Ground Screen

The ring is placed on a 12 x 12 foot copper mesh grid. The radial ends are terminated by 10 foot long ground rods positioned 6.25 feet apart around the circumference. The Ground Screen features all copper construction. The mounting pad, antenna and antenna coupler are for reference only.

Custom configurations are also available. Contact Valcom for details.
