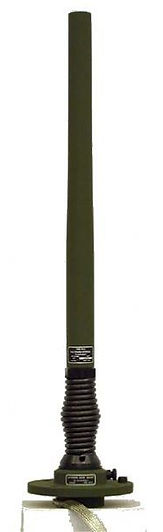

VMB-11512 Multi-Band Antenna

Features

  • Frequency Range: 115 MHz to 512 MHz

  • VSWR: 3.0:1

  • Power Handling: 100 W Average

  • Very Wide Bandwidth

  • Performs with or without a Ground Plane

  • Extremely Rugged and Reliable Design

  • Base Mount for Replacement Flexibility

  • Easy Assembly/Disassembly

  • NSN: 5985-20-003-1086

Detailed Description

The VMB-11512 is a multi-band vehicular whip antenna designed to provide VHF and UHF communications for a range of military applications. It is designed for use with today's cutting edge, wide-band, frequency agile radios and can be used to replace a multiple antenna setup. The VMB-11512 boasts a power handling capability of 100 Watts and less than 3.0:1 VSWR across the entire operating band of 115 MHz to 512 MHz

The VMB-11512 antenna comes in two pieces; A dipole style antenna, using revolutionary broad band tuning technology, housed within a fibreglass envelope, and an aluminum mounting flange which attaches to the vehicle using a standard vehicle 4-hole pattern.

The VMB-11512 uses Valcom's new integrated spring/whip base configuration. This offers a compact antenna design that is extremely rugged and reliable.

* Patent Pending
