VWB-56000 UHF/SHF Antenna

Features

Frequency Range: 500 MHz to 6 GHz
VSWR: 2.5:1
Power Handling: 100 W Average
Wide Bandwidth
Performs with or without a Ground Plane
Extremely Rugged and Reliable Design
Base Mount for Replacement Flexibility
Easy Assembly/Disassembly

Detailed Description

The VWB-56000 is a UHF/SHF dipole-style antenna designed to provide UHF and SHF communications for a range of military applications. It is designed for use with today's cutting edge, wide-band, frequency agile radios. The VWB-56000 boasts a power handling capability of up to 100 Watts and less than 2.5:1 VSWR across the entire operating band of 500 MHz to 6000 MHz.

Brochure

Typical VSWR

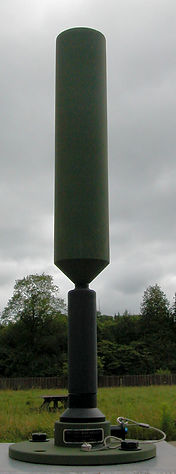

The VWB-56000 antenna comes in a two piece construction. Dipole style radiators are sealed inside a fibreglass envelope with an integral mounting spring attached. This assembly then threads securely into an aluminum mounting flange which attaches to the vehicle using a standard NATO 4-hole pattern. This offers a compact antenna design that is extremely rugged, reliable and easy to use.
