65-Foot Whip Antenna V-33065 and V-33065 FT
Features
-
Frequency Range: 500 KHz to 30 MHz
-
Power Handling: 5000 W Average
-
High reliability
-
Easy erection
-
Excellent electrical stability
-
Low cost installation
-
Low cost maintenance
-
Available with side feed or feed through input
Detailed Description

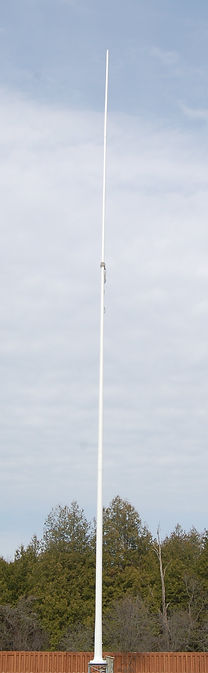

The Valcom Model V-33065 is a rugged, high reliability antenna designed for operation in areas of environmental extremes. This whip antenna is a member of the V-330 Series of antennas designed to meet the growing demand for a mechanically strong and electrically sound antenna that can perform in all situations.
Mechanical strength is achieved with a patented process using high strength filament wound fibreglass. Electrical stability is obtained by employing multiple braided copper conductors in the construction of the antenna.
![](https://static.wixstatic.com/media/fcd44a_7a1d244f14b34e7aa7ec4fa94838915d~mv2.jpg/v1/fill/w_208,h_673,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/fcd44a_7a1d244f14b34e7aa7ec4fa94838915d~mv2.jpg)
To assure long life the antenna is finished with epoxy polyamide paint which protects it from the sun's rays while offering good abrasion resistance.
​
The V-33065 is available in two standard configurations to meet various system and installation requirements. The standard antenna is provided with a feed point located 45 cm (18 in) above the base. To facilitate occasional inspection and to simplify erection, the VHB-17 heavy duty galvanized steel hinged plate is optionally available for the standard antenna. Where a base feed-through insulator is desired, order Model V-33065 FT.
​
A copper ground screen with a 100-foot radius. Model VGS-36100 , is available to improve the antenna ground system efficiency.
