VTGS - 20 Steel Tower

Features

  • Rugged galvanized steel construction

  • Hinged base secures with locking pin and bolts

  • Integral ladder on gin pole side

  • Accepts VGP-10 or VGP-17 Gin Pole

  • Available up to eight feet high in two-foot increments

Detailed Description

The VTGS-20BH series of steel towers provides a very convenient method of installing and erecting four Valcom antenna series:

​

VTGS - 20 Steel Tower

These are intended for use with either the VGP-10 or the VGP-17 Gin Pole, depending on antenna height, available separately. In addition to easing antenna installation, these towers are used to:

​

  • achieve ground clearance to avoid snow build-up

  • provide means of mounting auxiliary equipment

  • ​

A "Tower MTG Kit" is available to facilitate the mounting of couplers or other equipment.

Quick Reference Data

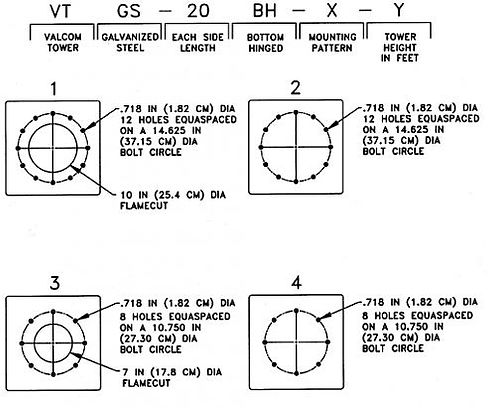

VTGS-20BH is the standard model number for Valcom's heavy duty steel hinged tower. The antenna mounting plate comes in four different configurations, as shown below.

​

Substitute "X" in the model number for the mounting plate that is required. Substitute "Y" in the model number for the height of tower required in two-foot increments.

​

Unless otherwise specified, the standard nominal height is four feet (1.2 M).

To view Foundation Details, please click here.
